L2 Basics: Configuring an EtherChannel

Today we’re going to take a look at how to configure an etherchannel between two Cisco Switches.

What is an etherchannel? It’s a way of taking multiple independent links and bundling them together, so that they appear as one logical connection between two devices. Etherchannels are commonly used between two switches, or between a switch and a host – which allows for both additional bandwidth and fault tolerance/redundancy. In the example today, we’ll be using an etherchannel protocol called Link Aggregation Control Protocol (LACP). LACP is an IEEE standard (802.3ad).

You might be thinking “Wait, wouldn’t multiple links cause a loop? Or trigger Spanning-tree to block ports?”. Not in this case! Etherchannel technologies work around those problems by creating a single logical interface for spanning-tree to worry about. The etherchannel protocol itself worries about loop prevention in between the two devices, so we get multiple ports of non-blocking bandwidth.

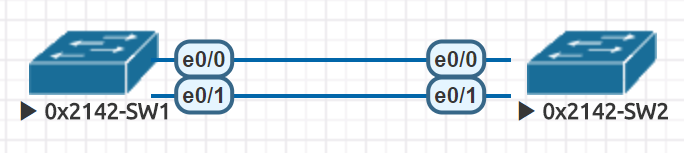

For everything we cover in this example, we’ll be using the following topology:

So we have two switches, which are connected together via Eth0/0 and Eth0/1. Each switch has three VLANs configured – 10, 20, and 30.

Configuring an Etherchannel

I’ll only be showing the configuration from the perspective of 0x2142-SW1 – but all configuration is replicated on 0x2142-SW2.

! We'll use the interface range command to apply the etherchannel configuration to
! both Eth0/0 and Eth0/1 at the same time:
0x2142-SW1(config)#int range Eth0/0 - 1

! We specify which etherchannel protocol to use by configuring 'channel-protocol'
! PAgP is a Cisco Proprietary protocol, but we'll be using LACP for this example:
0x2142-SW1(config-if-range)#channel-protocol ?
  lacp  Prepare interface for LACP protocol
  pagp  Prepare interface for PAgP protocol
0x2142-SW1(config-if-range)#channel-protocol lacp

! Next we need to specify a channel-group and mode:
0x2142-SW1(config-if-range)#channel-group 1 mode ?
  active     Enable LACP unconditionally
  auto       Enable PAgP only if a PAgP device is detected
  desirable  Enable PAgP unconditionally
  on         Enable Etherchannel only
  passive    Enable LACP only if a LACP device is detected

0x2142-SW1(config-if-range)#channel-group 1 mode active
Creating a port-channel interface Port-channel 1

0x2142-SW1(config-if-range)#
*Jan 26 01:03:04.532: %LINEPROTO-5-UPDOWN: Line protocol on Interface Port-channel1, changed state to up

Let’s talk through a few notes about the above configuration. In order to enable etherchannel, we only need to configure two commands: channel-protocol and channel-group. The channel-protocol command tells the switch which etherchannel protocol to use for negotiation (LACP in this case). The channel-group command provides two necessary components: the group number and mode. The group number is just a device-local identifier for which group to add these ports to. When we specified group 1, the switch adds both Eth0/0 and Eth0/1 into the new logical interface Port-Channel 1.

The etherchannel mode is also important. The two primary options we want to look at for LACP are active and passive. Active tells the switch to preemptively send out LACP negotiation packets. In this case, the switch really wants the ports to become a bundle and will ask it’s partner device for an etherchannel to be formed. Passive mode tells our switch to only negotiate if another device wants to. In this mode, our switch won’t send out any etherchannel negotiation packets unless its partner device does so first.

Generally speaking, the most common configuration is to set the mode on both devices to active. This ensures that both devices actively participate in trying to establish an etherchannel. Placing one device in active and one in passive will work as well. However, if both devices are placed into passive mode, an etherchannel will never form.

Validation

So how do we validate that the etherchannel has formed correctly? One way is using the show etherchannel summary command:

0x2142-SW1#show etherchannel summary
Flags:  D - down        P - bundled in port-channel
        I - stand-alone s - suspended
        H - Hot-standby (LACP only)
        R - Layer3      S - Layer2
        U - in use      N - not in use, no aggregation
        f - failed to allocate aggregator

        M - not in use, minimum links not met
        m - not in use, port not aggregated due to minimum links not met
        u - unsuitable for bundling
        w - waiting to be aggregated
        d - default port

        A - formed by Auto LAG


Number of channel-groups in use: 1
Number of aggregators:           1

Group  Port-channel  Protocol    Ports
------+-------------+-----------+-----------------------------------------------
1      Po1(SU)         LACP      Et0/0(P)    Et0/1(P)

From the output above, we see that there is one group configured with the group ID of 1. It shows that both Eth0/0 and Eth0/1 have been added into the Port-channel 1 interface. The (SU) next to the Port-channel interface indicate that the etherchannel is up (U) and configured for layer 2 (S).

I mentioned earlier that spanning-tree only worries about the port-channel interface, not the individual member ports. We can also check that out by using the show spanning-tree command:

0x2142-SW1#sh spanning-tree vlan 20
VLAN0020
  Spanning tree enabled protocol rstp
  Root ID    Priority    32788
             Address     aabb.cc00.1000
             This bridge is the root
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec

  Bridge ID  Priority    32788  (priority 32768 sys-id-ext 20)
             Address     aabb.cc00.1000
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time  300 sec

Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- --------------------------------
Et0/2               Desg FWD 100       128.3    Shr
Et0/3               Desg FWD 100       128.4    Shr
<-- Output omitted -->
Po1                 Desg FWD 56        128.65   Shr

Making Configuration Changes to an Etherchannel

Now that we have a working etherchannel – We have a few things that need special attention. The individual port configurations, Eth0/0 and Eth0/1 in this case, need to match at all times! Port configuration mis-matches are going to be an easy way to inadvertently bring down the port-channel. The good thing is that we now have a convenient Port-Channel interface which we can use for configuration. This logical port will replicate any configuration changes to all member ports.

! Let's jump into our Port-Channel 1 interface and configure a trunk for VLAN 20
0x2142-SW1(config)#int po1
0x2142-SW1(config-if)#switchport mode trunk
0x2142-SW1(config-if)#switchport trunk allowed vlan 20
! Now we can check the individual port configs:
0x2142-SW1(config-if)#do sh run int e0/0
Building configuration...

Current configuration : 176 bytes
!
interface Ethernet0/0
 switchport trunk allowed vlan 20
 switchport mode trunk
 channel-protocol lacp
 channel-group 1 mode active
end

0x2142-SW1(config-if)#do sh run int e0/1
Building configuration...

Current configuration : 176 bytes
!
interface Ethernet0/1
 switchport trunk allowed vlan 20
 switchport mode trunk
 channel-protocol lacp
 channel-group 1 mode active
end

Easy enough, right? The configuration changes for the trunk are now on both Eth0/0 and Eth0/1.

Troubleshooting Etherchannels

There is always a possibility that something goes wrong – so let’s take a quick look at some common problems and how to fix them.

Remember how I said that the member port configurations had to match? Here’s what happens if we make a configuration change on only one of the two member ports:

0x2142-SW1(config)#int eth0/1
0x2142-SW1(config-if)#switchport trunk allowed vlan 30
0x2142-SW1(config-if)#
*Jan 28 20:43:55.458: %EC-5-CANNOT_BUNDLE2: Et0/1 is not compatible with Et0/0 and will be suspended (vlan mask is different)

Eth0/1 immediately gets put into a suspended state, and is no longer active in the port-channel interface. In this case the switch gives us a good hint as to what’s wrong – vlan mask is different. Error messages will vary slightly, but a suspended port is easy to fix by comparing individual port configurations and fixing the mismatch.

Here’s another one:

*Jan 28 21:06:07.346: %EC-5-L3DONTBNDL2: Et0/0 suspended: LACP currently not enabled on the remote port.
*Jan 28 21:06:08.009: %EC-5-L3DONTBNDL2: Et0/1 suspended: LACP currently not enabled on the remote port.

This error message can mean a few things – the common one being exactly what it states! Check both sides of the connection, and ensure that LACP is configured on each device. This error message can also occur on certain mismatches – like if one side is running as a Layer 2 etherchannel, but the other side is running as Layer 3.

One more:

Jan 28 20:83:55.458 %ETHPORT-5-IF_DOWN_PORT_CHANNEL_MEMBERS_DOWN: Interface port-channel1 is down (No operational members)

The above message is also somewhat self-explanatory. In this case, the switch is unable to bring up the port-channel interface, because none of the underlying member ports are coming online. Troubleshoot what might be wrong with those ports first, then the port-channel should come up.


Hope this was useful! In a later post, we’ll dig into more configuration and considerations – like packet hashing, layer 3 etherchannels, and how packets are weighted between interfaces.

Questions? Drop them in the comments below, or message me on Twitter!
